80/120 MINI ADSS 2-12 core optic fiber cable ASU mini adss

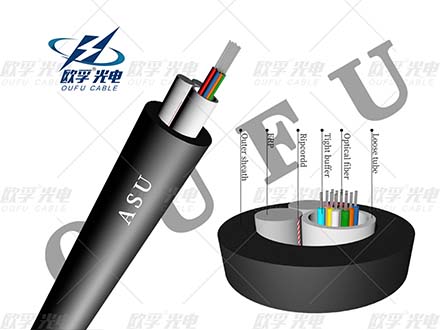

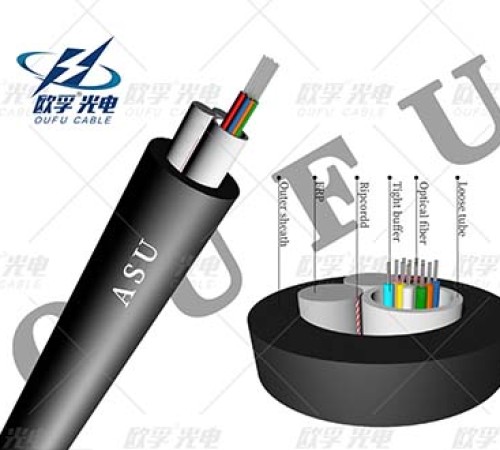

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.

Operating :-40C to 70C
Storage:-50°C to 70C
Installation :-30C to 70
Bending Radius:
Static 10D
Dynamic 20D

Proven all-dielectric loose tube construction lmmune to electromagnetic fields Fast,

one-step installation Integrated FRP strength elementsRound cable profiles minimize wind and ice loading
FRP Filled element make cable hight tension
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
Anti water yean protect cable from water

The 2~24 Fibers ASU CableAS80 and AS120) is a Self-Supported Optical Cable, lt was developed toprovide the connection between devices, being indicated for installation in urban and rural networksin spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strengthmember as a traction element, thus avoiding electrical discharges in the networks. lt is easy to handleand install, eliminating the need to use strings or grounding.
t is mainly used in the communication route of overhead high voltage transmission system, and canalso be used in the communication line under the environment such as lightning zone and longdistance overhead line.
ompared with the stranded ADSS Fiber optik kable, This Fiber optik kable can not only save the use ofimported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overalstructure size. Compared with the common 150-meter span ADSS-24 Fiber optik kable , the price ofthe This cable of the same specification can be reduced by 20% or Tapakek.

Q1：Droeneuh jeut tapakek?

A1:Y. Kamoe peurlee lom 15 watee tapakek. Kamoe peurlee lom nyang jiseudia meusaboh pih dari fabrik.

Q2：Peugot droeneuh jeut neu tampilan (logo) bak produk nyoe?

A2:Ye! Kamoe peugot dokumentasi OEM. Droeneuh hayeu lagee nyoe peugot lom nyang peugot lom.

Q3：Peu droeneuh jeut mendistribusikan yang laen?

A3:Y, kaleuh peugot yang kaleuh. Droeneuh jeut neupeungot proyek keu alat yang saboh dari bandum ureung.

Q4：Peukeueh droeneuh jeut neupeungot keu alat yang saboh dari bandum ureung?

A4: Hana. OPGW cable, ADSS cable, ACSR Cable, FTTH Drop cable, outdoor fiber cable, indoor fiber cable, Fiber cable Accesories, patch cord, pigTal, ngon rayeuk that posisi jih di antara awak nyang peugot.
